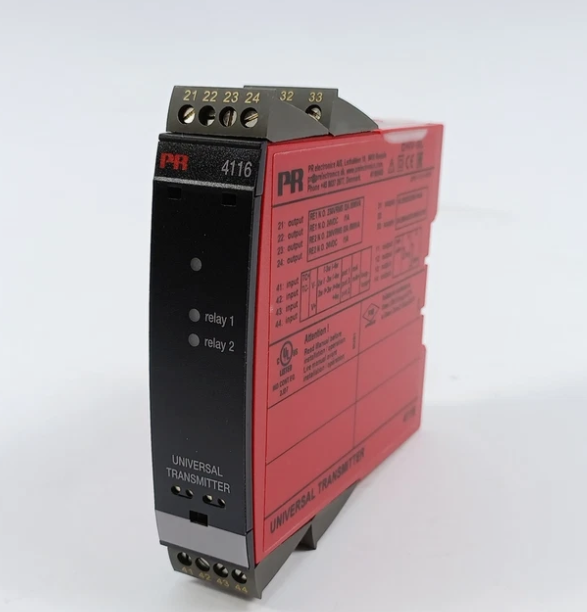

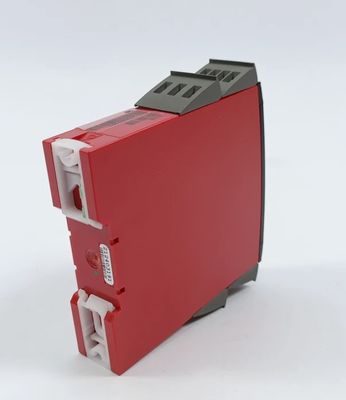

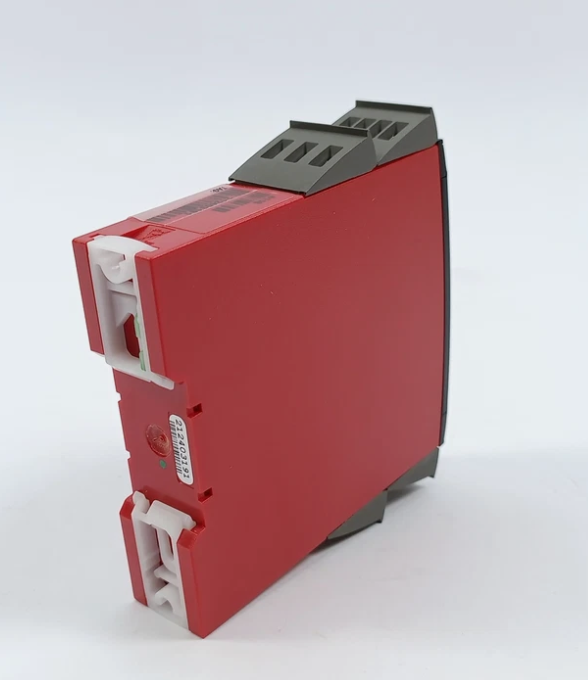

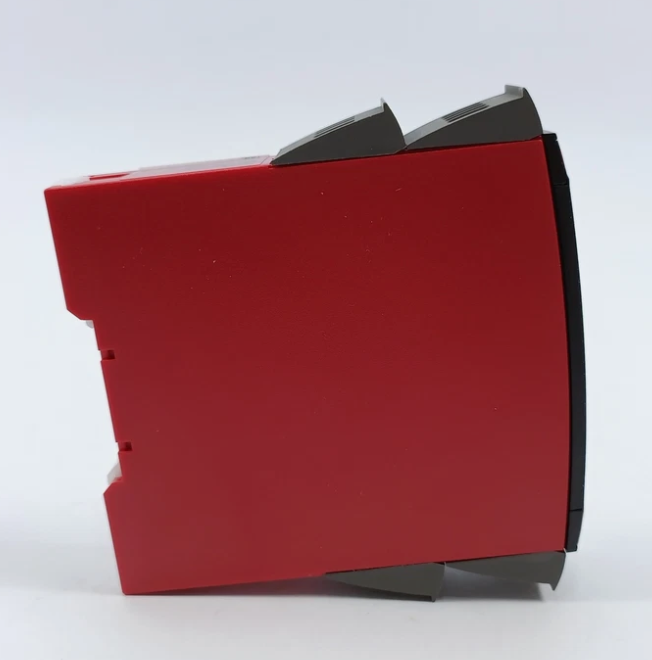

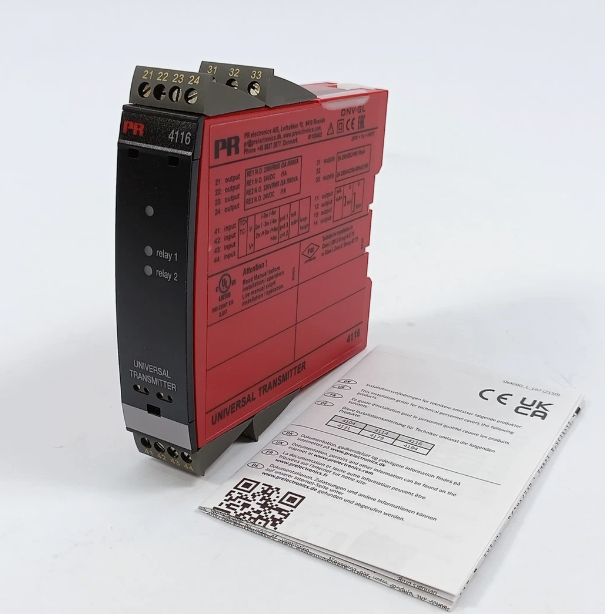

PR Electronics PR 4116 Universal Transmitter | Reliable signals Multifunctional devices

  • PR Electronics PR 4116 Universal Transmitter | Reliable signals Multifunctional devices
  • PR Electronics PR 4116 Universal Transmitter | Reliable signals Multifunctional devices
  • PR Electronics PR 4116 Universal Transmitter | Reliable signals Multifunctional devices
  • PR Electronics PR 4116 Universal Transmitter | Reliable signals Multifunctional devices
Place of Origin China
Nombre de la marca PR
Certificación /
Model Number PR4116
Minimum Order Quantity 1pc
Precio USD 150/pc
Packaging Details original packing
Delivery Time 5 working days
Payment Terms T/T
Supply Ability 1000pc/month

Éntreme en contacto con gratis las muestras y los vales.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Operating temperature -20°C to +60°C Calibration temperature 20...28°C
Screw terminal torque 0.5 Nm 2...13.2 Hz ±1 mm
Deja un mensaje
Descripción de producto

Environmental Conditions

Operating temperature -20°C to +60°C
Storage temperature -20°C to +85°C
Calibration temperature 20...28°C
Relative humidity < 95% RH (non-cond.)
Protection degree IP20

Mechanical specifications

Dimensions (HxWxD) 109 x 23.5 x 104 mm
Dimensions (HxWxD) w/ PR 4500 109 x 23.5 x 131 mm
Weight approx. 175 g
Weight incl. 4501 / 451x (approx.) 190 g / 205 g
Wire size 0.13...2.08 mm2 AWG 26...14 stranded wire
Screw terminal torque 0.5 Nm
Vibration IEC 60068-2-6
2...13.2 Hz ±1 mm
13.2...100 Hz ±0.7 g

Common specifications

Supply
Supply voltage, universal 21.6...253 VAC, 50...60 Hz or 19.2...300 VDC
Fuse 400 mA SB / 250 VAC
Max. required power ≤ 2.5 W
Max. power dissipation ≤ 2.5 W

Isolation voltage
Test voltage 2.3 kVAC
Working voltage 250 VAC (reinforced) / 500 VAC (basic)

Response time
Temperature input (0...90%, 100...10%) ≤ 1 s
mA / V input (0...90%, 100...10%) ≤ 400 ms

Auxiliary supplies
2-w. supply (term. 44...43) 25...16 VDC / 0...20 mA
Programming PR 4500 communication interfaces
Signal dynamics, input 24 bit
Signal dynamics, output 16 bit
Signal / noise ratio Min. 60 dB (0...100 kHz)
Accuracy Better than 0.1% of sel. range
EMC immunity influence < ±0.5% of span
Extended EMC immunity: NAMUR NE21, A criterion, burst

< ±1% of span
