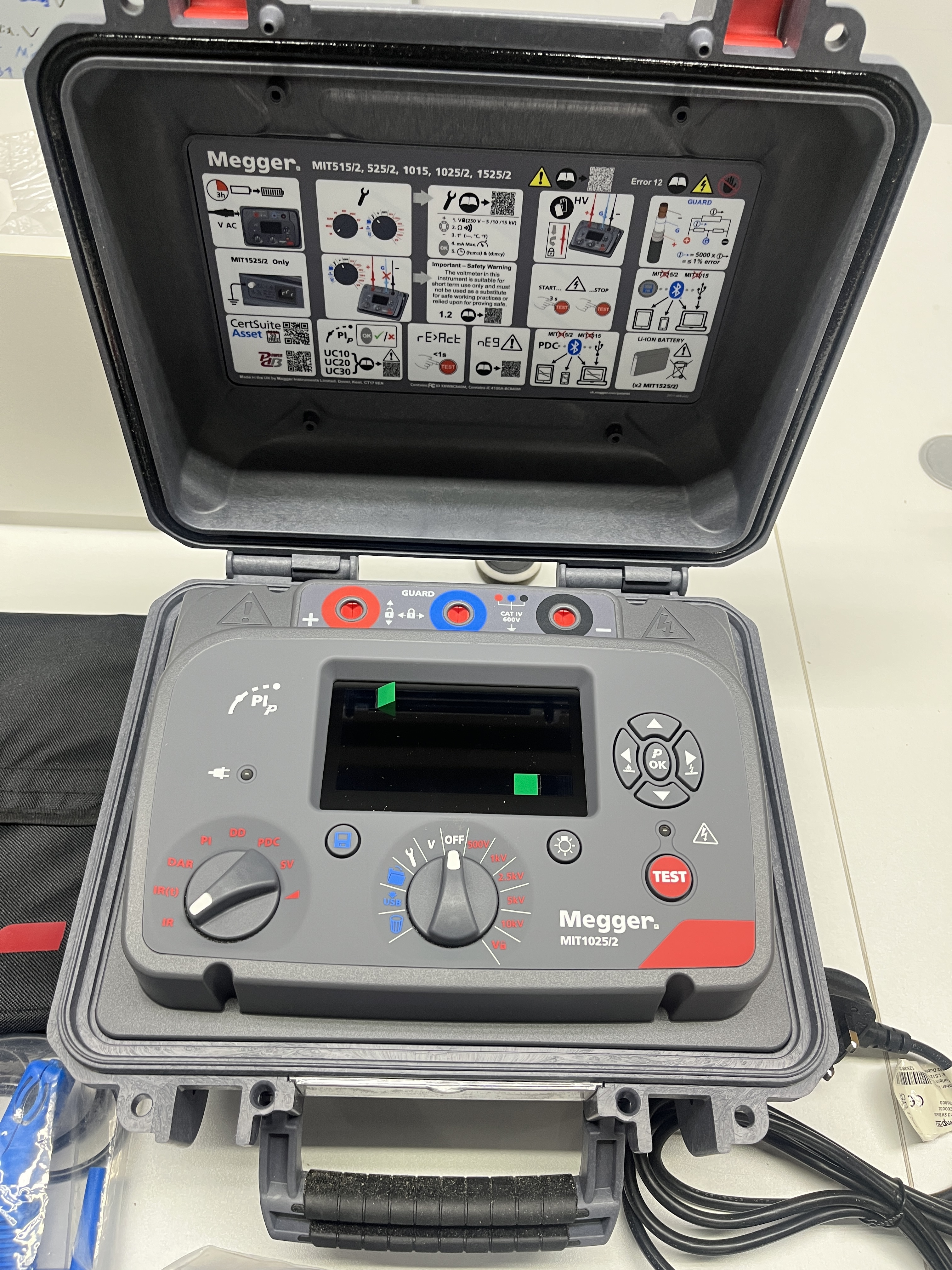

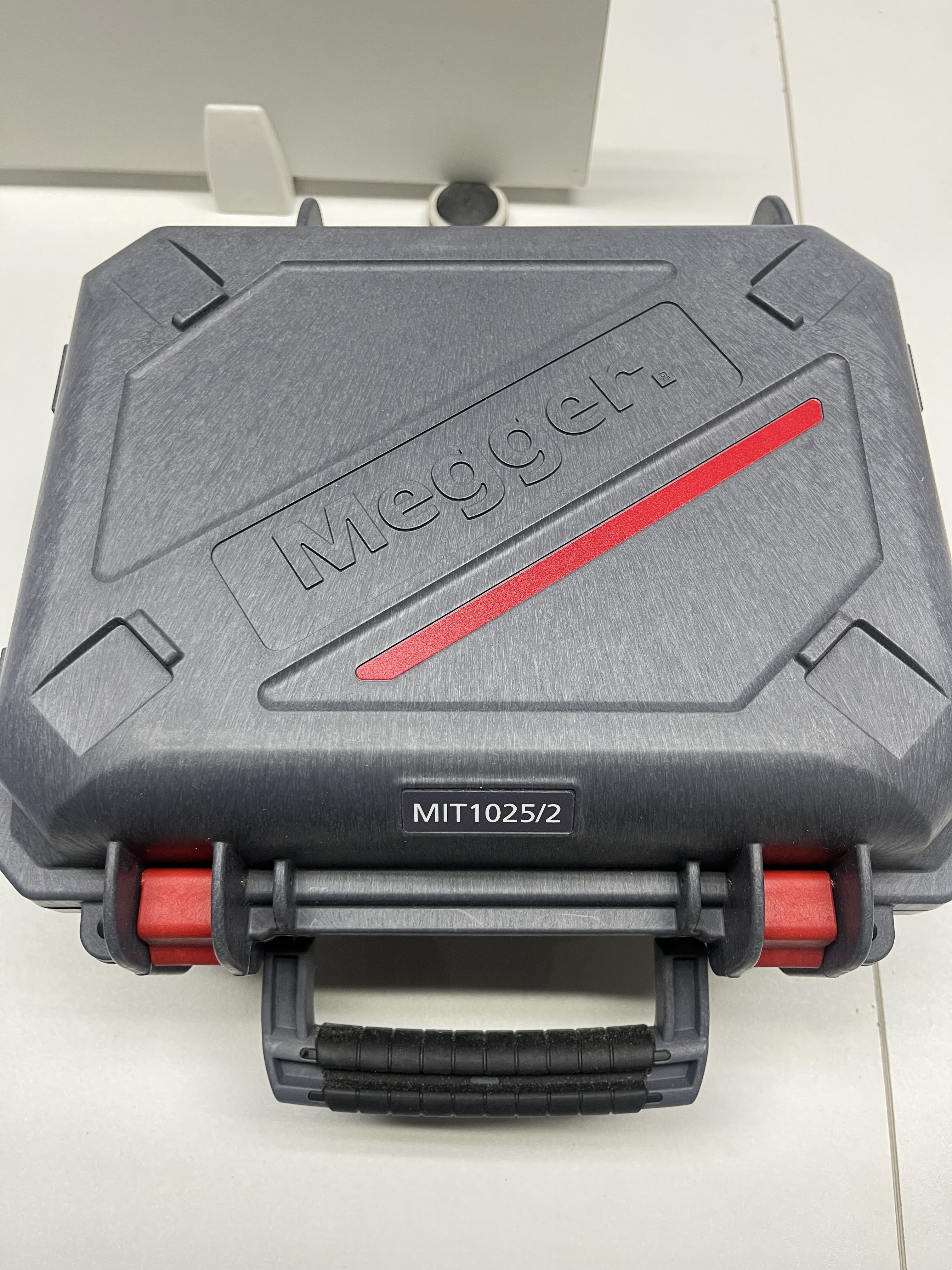

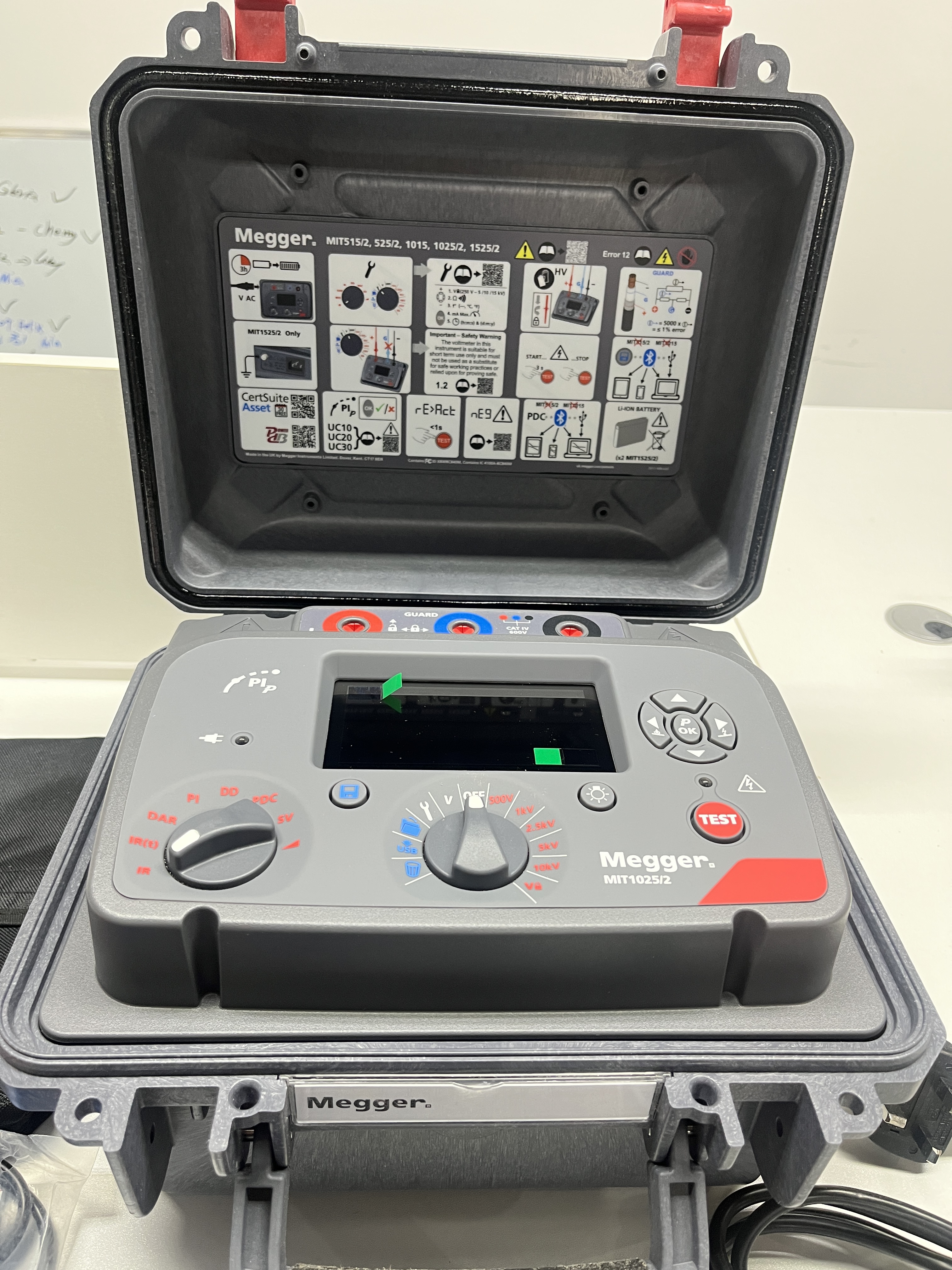

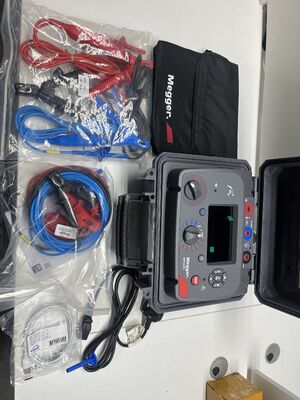

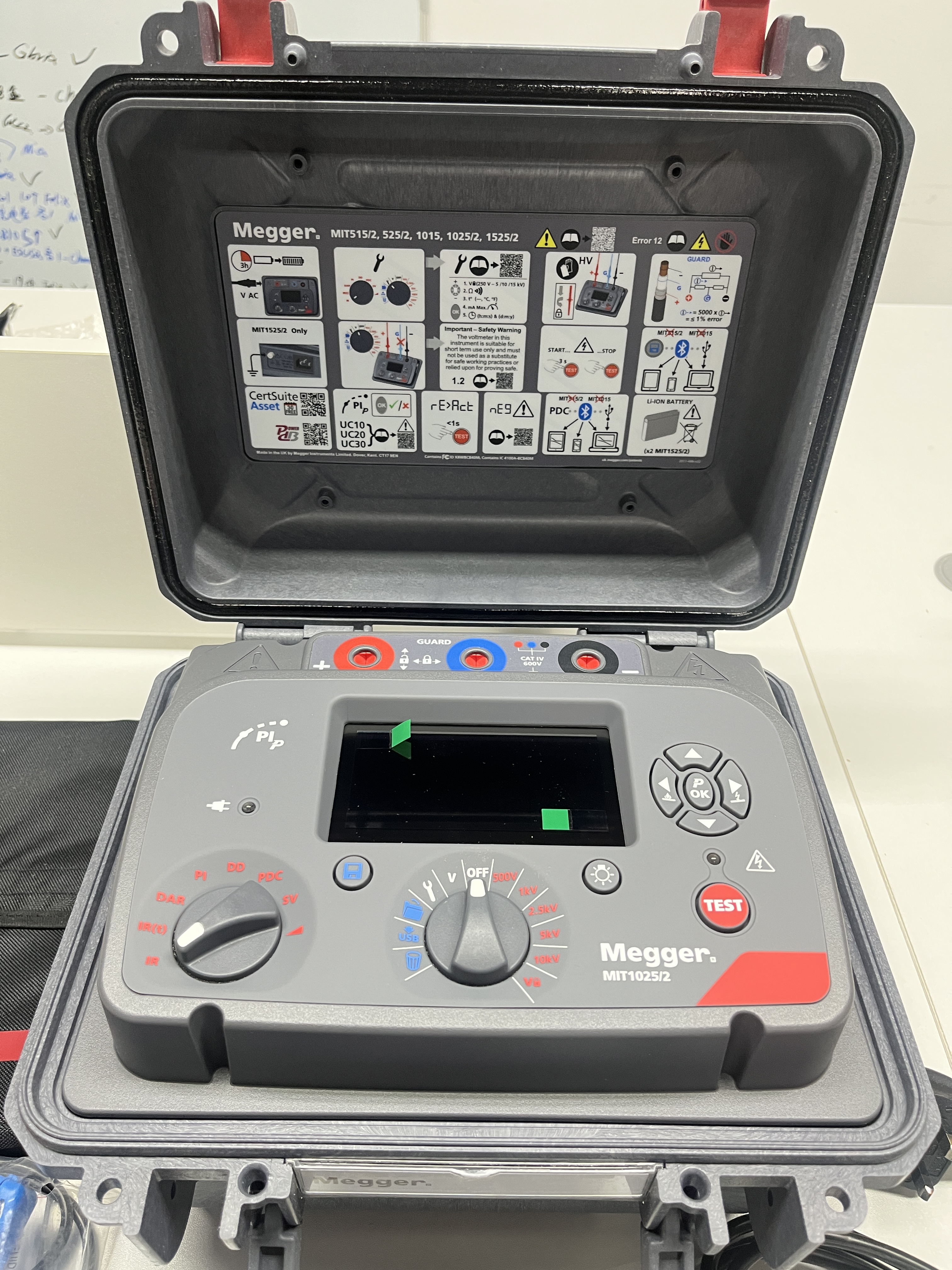

Para Megger MIT1025/2 Megohmetro Probador de Resistencia de Aislamiento 10KV

0.01 nA a 5 mA Precisión de medición de corriente (23°C) ± 5% ± 0.2 nA at all voltages Interference rejection S1-5521 mA per 250 V up to a maximum of 2 mA S1-1052 1 mA per 600 V up to a maximum of 2 mA Timer range Up to 99 minutes and 59 seconds from start of test 15 second minimum setting for test voltage ≥1000 V 30 second minimum setting for test voltage <1000 V Memory capacity 32kB Test regimes Auto IR, PI, DAR, SV y DD. Interfaz RS232 y almacenamiento de datos de USB Voltagem, tiempo de prueba, corriente de fuga, resistencia, PI, DAR, DD, capacidad y constante de tiempo Salida en tiempo real, serie,una vez por segundo de tensión de ensayo, current and resistance Operating temperature-10°C to 50°C Storage temperature-25°C to 65°C Ingress protection (lid closed) IP65 Humidity 90% RH non-condensing at 40°C Safety Meets the requirements of EN61010-1Capacidad de producción de energía eléctrica para el uso en zonas industriales pesadas: dimensiones 305 x 194 x 360 mm (12,7 x 6 x 14,2 pulgadas) peso 7,1 kg (16 lb) aprox. S1-552 and S1-1052 5 kV and 10 kV Insulation Resistance Testers Item (Qty) Order Code 5 kV insulation resistance tester S1-552 10 kV insulation resistance tester S1-1052 Included Accessories 3m lead set 8101-181 RS232 cable 25955-025 USB cable 25970-041 User guide on CD-ROM 6172-988 Item (Qty) Order Code Optional Accessories 3 m lead set with straight jaw clamps 6220-797 15 m lead set 8101-183 3 m lead set 6 kV insulated clips 6220-820 3 m lead set 1 kV insulated clips 6220-822 3 m lead set 10 kV insulated clips 6220-811 3 m screened lead set (5 kV) 6220-835 3 m screened lead set (10 kV) 6220-834 15 m screened lead set (5 kV) 6311-080 15 m screened lead set (10 kV) 6220-83
