Eaton MTL5531 Safety Transmitter with Zone 0 Hazardous Rating SIL2 Safety Integrity and Galvanic Isolation 250V rms

  • Eaton MTL5531 Safety Transmitter with Zone 0 Hazardous Rating SIL2 Safety Integrity and Galvanic Isolation 250V rms
  • Eaton MTL5531 Safety Transmitter with Zone 0 Hazardous Rating SIL2 Safety Integrity and Galvanic Isolation 250V rms
  • Eaton MTL5531 Safety Transmitter with Zone 0 Hazardous Rating SIL2 Safety Integrity and Galvanic Isolation 250V rms
  • Eaton MTL5531 Safety Transmitter with Zone 0 Hazardous Rating SIL2 Safety Integrity and Galvanic Isolation 250V rms
  • Eaton MTL5531 Safety Transmitter with Zone 0 Hazardous Rating SIL2 Safety Integrity and Galvanic Isolation 250V rms
Lugar de origen Inglés
Nombre de la marca EATON
Número de modelo MTL5531
Cantidad de orden mínima 2
Precio USD＄183
Detalles de empaquetado embalaje original
Tiempo de entrega En stock
Condiciones de pago LC, D/A, D/P, T/T, Western Union
Capacidad de la fuente 10 piezas
Datos del producto
Resaltar

EATON MTL5531 safety transmitter

,

original PLC safety transmitter

,

British EATON MTL5531 transmitter
Deja un mensaje
Descripción de producto

General specifications








Product Name

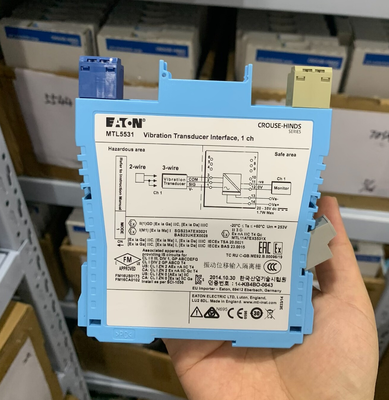

Eaton Crouse-Hinds series MTL5500 vibration transducer interface
Catalog Number
MTL5531
EAN
5056891309789
Product Length/Depth
109.8 mm
Product Height
118.8 mm
Product Width
15.8 mm
Product Weight
150 g



Certifications and compliances






Area classification
Hazardous/Classified Locations
Standards type
IEC
IECEx/ATEX
IECEx/ATEX hazardous rating
Zone 0
EMC
EN61326
Safety Integrity Level According to IEC61508
SIL2





Product specifications










Signal Type
Pulse and vibration
Number of Channels
1
Mounting Method
T-section 35mm DIN rail
Power Dissipation
1.33W
Signal Range
Minimum: -20V, maximum: -0.5V
Transfer Accuracy
<±50mV (DC)
Switching Frequency
-3 dB at 47 kHz (typical)
Galvanic Isolation
250V rms between safe-area circuits and power supply
Type
2- or 3-wir
