FLIR MSX TG165-X Thermal Imaging Camera -25°C ~ 300°C 80×60 Pixel

Lugar de origen PORCELANA
Nombre de la marca flil
Certificación /
Número de modelo TG165-X
Cantidad de orden mínima 1 por ciento
Precio USD 280/PC
Detalles de empaquetado Embalaje original
Tiempo de entrega 5 días hábiles
Condiciones de pago T/T
Capacidad de la fuente 1000pc/mes

Éntreme en contacto con gratis las muestras y los vales.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Resolución IR 80 × 60 píxeles Sensibilidad térmica_NETD <70 mK
Campo de visión [FOV] 71° × 56° Paso del detector 17 micras
Resolución de visualización 320 × 240 píxeles Moq 1 por ciento
Deja un mensaje
Descripción de producto

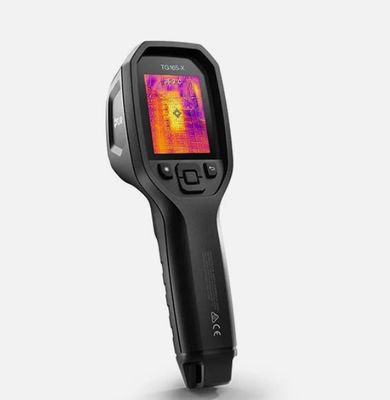

The FLIR TG165-X helps you visualize the hot and cold spots that can indicate electrical faults, mechanical break-downs, or air and water leaks. This all-in-one, non-contact measurement and imaging tool displays temperature anomalies on screen, allowing you to inspect efficiently and pinpoint the source of problems faster than with a single-spot IR thermometer. See components clearly and even read labels thanks to FLIR patented MSX image enhancement, which adds visual details to full thermal images. The bullseye laser ensures you’re always targeting the right component for measurement while easy-to-use buttons and settings help you complete the job quickly and stress-free. With internal storage for up to 50,000 images and a rechargeable Li-ion battery, the FLIR TG165-X is ready to go right out of the box.





Camera software update Using USB cable or SD card
Color palettes Iron, Rainbow, Whitehot, Blackhot, Arctic, Lava
Detector Pitch 17 µm
Digital image enhancement No
Display resolution 320 × 240 pixels
Field of view [FOV] 71° × 56°, adapts to the IR lens
Focal Plane Array [FPA]_Spectral range Uncooled microbolometer/7.5–14 µm
Focus Fixed
Gallery Yes
Image Frequency 8.7 Hz
Image Modes MSX® (Multi Spectral Dynamic Imaging), visual
IR Resolution 80 × 60 pixels
Laser Class 1
Minimum Focus Distance 0.3 m (0.98 ft)
Minimum Measurement Distance 0.26 m (0.85 ft.)
Resolution 2 MP (1600 × 1200 pixels)
Thermal Sensitivity_NETD <70 mK
